18650 3.7V 1200mAh High magnification cylindrical lithium battery

    New customer coupon 1$: XINniankuaile
  • Model: high-magnification-lithium-battery-04
  • Payment
  • Stock: in Stock, usually dispatched within 24 hours

Please Choose:

Battery plug







 Ask a Question

$8.00

Add to Cart:

18650 3.7V 1200mAh High magnification cylindrical lithium battery

Specifications
Voltage (V) 3.7V 3.7V 3.7V
Capacity (Ah) 1200mAh 1200mAh 1200mAh
Charging voltage (V) 4.2V 4.2V 4.2V
Number of cycles (times) More than 300 times More than 300 times More than 300 times
Scope of use Toy model Toy model Toy model
Weight 40g 40g 40g

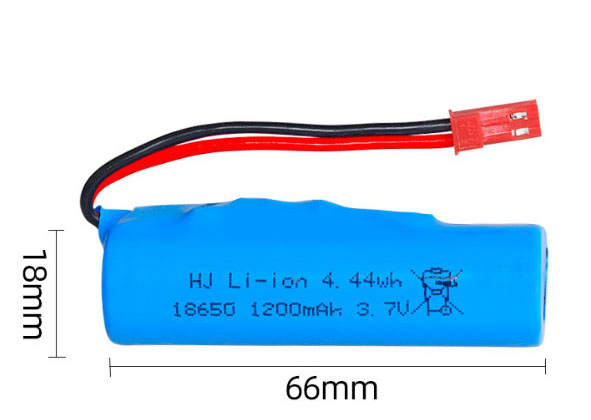

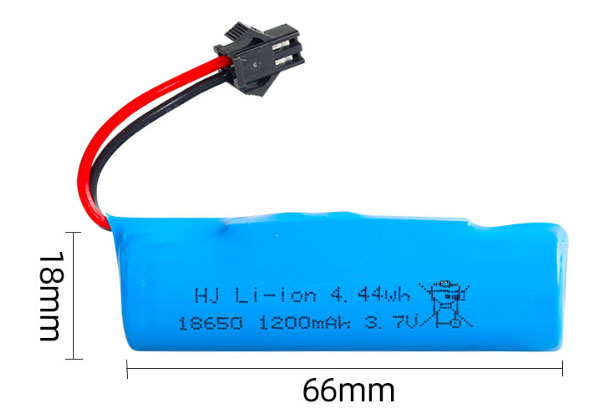

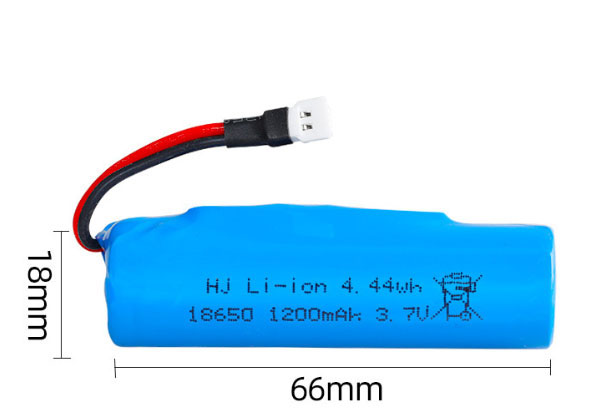

Product size (mm) Length 69 * Diameter 18 (mm) Length 69 * Diameter 18 (mm) Length 69 * Diameter 18 (mm)
Shelf life 1 year
Battery type Cylindrical lithium battery[SM-2P plug] Cylindrical lithium battery[JST plug] Cylindrical lithium battery[Air to air white plug]
Combination method 1S1P 1S1P 1S1P
Charging current (A) 0.5-1(A) 0.5-1(A) 0.5-1(A)
Protection function With charging and discharging protection board With charging and discharging protection board With charging and discharging protection board
Battery model 18650 18650 18650
Battery rate 5C 5C 5C
Charger configuration

Connect this charging cable to the power device for charging: (mobile power supply, phone adapter, computer, car charger)

Connect this charging cable to the power device for charging: (mobile power supply, phone adapter, computer, car charger)

Connect this charging cable to the power device for charging: (mobile power supply, phone adapter, computer, car charger)

3.7V 1200mAh 18650 SM plug is suitable for off-road vehicles such as Q7 torsion cars, torsion cars, and other toy products

18650 lithium battery with protective plate
Equipped with overcharging/discharging protection function. Fully charged automatic power outage, multiple protection charging
If the battery is low, please be sure to charge it before use. It can be cycled for 300+times

1. Small volume and large capacity
High quality battery cells, sufficient capacity, stable voltage, and strong power

2. Stable performance
Stable lithium battery power supply
Effectively preventing the damage of unstable current to the battery

3. Durable and environmentally friendly
Can be reused more than 300 times;
Lithium batteries do not contain heavy metals such as lead and mercury

4. Strong applicability
Widely applicable to electronic toy products such as electric vehicle models, ship models, and aircraft models;
As long as the plug voltage is the same, it can be used

Battery use:
When charging, keep away from flammable items as overcharging may cause the battery to explode.
Batteries that have already ruptured should be treated in green immediately and cannot be reused.
Connecting the positive and negative poles can cause battery short circuits and explosion hazards.
Battery damage and injury caused by not following the instructions shall be borne by the user.
Battery damage caused by human overcharging and discharging cannot be returned or exchanged. Do not charge or discharge without anyone watching, as accidents may occur.

REMINDER
1. Do not use nickel cadmium (NICD), nickel hydrogen (NIMH), or other types of battery specific chargers to charge lithium ion batteries.
Please use a Li ion dedicated charger for charging.
2. Do not charge without anyone watching.
3. Do not overcharge (the fully charged voltage of each battery cell should not exceed 4.2V).
4. When charging, please note that the charging desktop or platform can withstand heat and high temperatures.
5. At no time should the battery cells overheat. After the temperature of the battery cell reaches 60 ℃, there may be safety hazards, even combustion.
6. During charging, the battery shall not be close to or directly placed in flammable materials such as paper, plastic, carpet, ethylene, leather, wood, or directly placed in a Model car or car for charging.
7. Do not over discharge (the voltage after each cell is discharged shall not be less than 2.75V), as over discharge may damage the battery, such as bulging.
8. Do not keep the battery close to liquid or store it in a damp place.
9. Do not place the battery near open flames or heaters or other sources of ignition.
10. Please keep the battery out of reach of children.
11. If there is a collision during use, please remove the battery. Carefully check whether the battery and connector are normal, just in case. (Note: The battery may be hot to the touch!)
12. Do not splash the electrolyte into the eyes or skin. If it accidentally splashes, please wash it immediately with water. In severe cases, please seek medical attention immediately.
13. Do not disassemble or reassemble the battery or change the wiring arbitrarily.
14. Please carefully check the battery voltage and level before charging or using.
15. Do not short circuit (positive and negative polarity reversed).
16. Do not directly contact batteries with leakage.
17. Please charge within a temperature range of 0-45 ℃.
18. For batteries that have not been used for a long time, please ensure that they are charged and discharged for activation within 3 months to maintain battery stability.
