802555 3.7V 800mAh High magnification polymer lithium battery

    New customer coupon 1$: XINniankuaile
  • Model: high-magnification-polymer-battery-34
  • Payment
  • Stock: in Stock, usually dispatched within 24 hours

Please Choose:

Battery plug







 Ask a Question

$12.99

Add to Cart:

802555 3.7V 800mAh High magnification polymer lithium battery

Applicable to DFD F181F187F163, JJRC H12C and other similar products.

Specifications
Voltage (V) 3.7V 3.7V 3.7V
Capacity (Ah) 800mAh 800mAh 800mAh
Charging voltage (V) 4.2V 4.2V 4.2V
Number of cycles (times) More than 300 times More than 300 times More than 300 times
Scope of use Toy model Toy model Toy model
Weight 19.5g 19.5g 19.5g

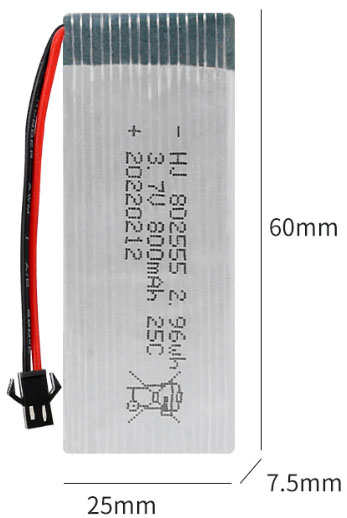

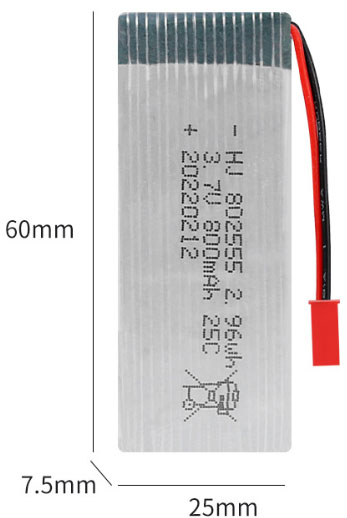

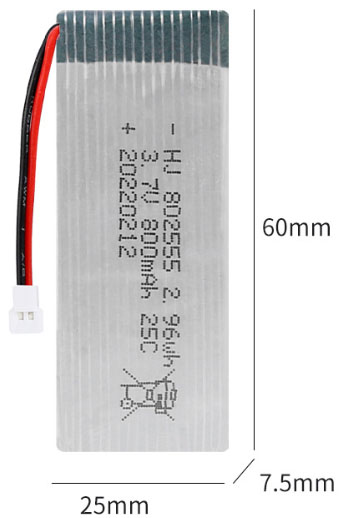

Product size (mm) Length 60 * Width 25 * Thickness 7.5 (mm) Length 60 * Width 25 * Thickness 7.5 (mm) Length 60 * Width 25 * Thickness 7.5 (mm)
Shelf life 1 year  1 year  1 year
Charging time (h) About 1-3 hours About 1-3 hours About 1-3 hours
Battery cell standard A-type battery cell A-type battery cell A-type battery cell
Battery type Cylindrical lithium battery[Air to air plug] Cylindrical lithium battery[JST Red plug] Cylindrical lithium battery[SM-2P plug]
Combination method 1S 1S 1S
Charging current (A) 0.5-1(A) 0.5-1(A) 0.5-1(A)
Protection function Belt plate Outgoing line+terminal Belt plate Outgoing line+terminal Belt plate Outgoing line+terminal
Battery model 802555 802555 802555
Battery rate 25C 25C 25C

Long lifespan and recyclability
Polymer high rate lithium batteries have a long service life and can be cycled for charging and discharging more than 300 times

Small volume full load high energy
The lithium battery provides stable power supply, effectively preventing the damage of unstable current to the battery. It has a large capacity and can be used for a long time

High magnification support for fast charging and discharging
Fast charging and fast discharging 20C high rate lithium battery, capable of instantaneous discharge of 20C and continuous discharge of 15C

Safe non-toxic harmless development
It does not contain harmful substances such as lead and mercury, and the built-in anti overcharge/over discharge precision protection board can effectively protect the safety and longer lifespan of the battery

Battery use:
When charging, keep away from flammable items as overcharging may cause the battery to explode.
Batteries that have already ruptured should be treated in green immediately and cannot be reused.
Connecting the positive and negative poles can cause battery short circuits and explosion hazards.
Battery damage and injury caused by not following the instructions shall be borne by the user.
Battery damage caused by human overcharging and discharging cannot be returned or exchanged. Do not charge or discharge without anyone watching, as accidents may occur.

REMINDER
1. Do not use nickel cadmium (NICD), nickel hydrogen (NIMH), or other types of battery specific chargers to charge lithium ion batteries.
Please use a Li ion dedicated charger for charging.
2. Do not charge without anyone watching.
3. Do not overcharge (the fully charged voltage of each battery cell should not exceed 4.2V).
4. When charging, please note that the charging desktop or platform can withstand heat and high temperatures.
5. At no time should the battery cells overheat. After the temperature of the battery cell reaches 60 ℃, there may be safety hazards, even combustion.
6. During charging, the battery shall not be close to or directly placed in flammable materials such as paper, plastic, carpet, ethylene, leather, wood, or directly placed in a Model car or car for charging.
7. Do not over discharge (the voltage after each cell is discharged shall not be less than 2.75V), as over discharge may damage the battery, such as bulging.
8. Do not keep the battery close to liquid or store it in a damp place.
9. Do not place the battery near open flames or heaters or other sources of ignition.
10. Please keep the battery out of reach of children.
11. If there is a collision during use, please remove the battery. Carefully check whether the battery and connector are normal, just in case. (Note: The battery may be hot to the touch!)
12. Do not splash the electrolyte into the eyes or skin. If it accidentally splashes, please wash it immediately with water. In severe cases, please seek medical attention immediately.
13. Do not disassemble or reassemble the battery or change the wiring arbitrarily.
14. Please carefully check the battery voltage and level before charging or using.
15. Do not short circuit (positive and negative polarity reversed).
16. Do not directly contact batteries with leakage.
17. Please charge within a temperature range of 0-45 ℃.
18. For batteries that have not been used for a long time, please ensure that they are charged and discharged for activation within 3 months to maintain battery stability.
