18650 7.4V 5600mAh High magnification cylindrical lithium battery
| Specifications |
 |
| Voltage (V) |
7.4V |
| Capacity (Ah) |
5600mAh |
| Charging voltage (V) |
8.4V |
| Number of cycles (times) |
More than 300 times |
| Scope of use |
Toy model |
| Weight |
192g |

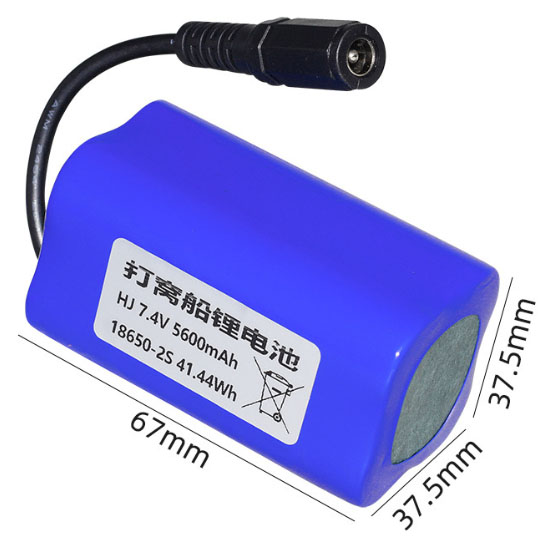

| Product size (mm) |
Length 67 * Width 37.5 * Thickness 37.5 (mm) |
| Shelf life |
1 year |
| Charging time (h) |
About 3-5 hours |
| Battery cell standard |
A-type battery cell |
| Combination method |
2S2P |
| Charging current (A) |
1-2A |
| Battery model |
18650 |
| Battery rate |
5C |
1. Small volume and large capacity
High quality battery cells, sufficient capacity, stable voltage, and strong power
2. Stable performance
Stable lithium battery power supply
Effectively preventing the damage of unstable current to the battery
3. Durable and environmentally friendly
Can be reused more than 300 times;
Lithium batteries do not contain heavy metals such as lead and mercury
4. Strong applicability
Widely applicable to electronic toy products such as electric vehicle models, ship models, and aircraft models;
As long as the plug voltage is the same, it can be used
Battery use:
When charging, keep away from flammable items as overcharging may cause the battery to explode.
Batteries that have already ruptured should be treated in green immediately and cannot be reused.
Connecting the positive and negative poles can cause battery short circuits and explosion hazards.
Battery damage and injury caused by not following the instructions shall be borne by the user.
Battery damage caused by human overcharging and discharging cannot be returned or exchanged. Do not charge or discharge without anyone watching, as accidents may occur.
REMINDER
1. Do not use nickel cadmium (NICD), nickel hydrogen (NIMH), or other types of battery specific chargers to charge lithium ion batteries.
Please use a Li ion dedicated charger for charging.
2. Do not charge without anyone watching.
3. Do not overcharge (the fully charged voltage of each battery cell should not exceed 4.2V).
4. When charging, please note that the charging desktop or platform can withstand heat and high temperatures.
5. At no time should the battery cells overheat. After the temperature of the battery cell reaches 60 ℃, there may be safety hazards, even combustion.
6. During charging, the battery shall not be close to or directly placed in flammable materials such as paper, plastic, carpet, ethylene, leather, wood, or directly placed in a Model car or car for charging.
7. Do not over discharge (the voltage after each cell is discharged shall not be less than 2.75V), as over discharge may damage the battery, such as bulging.
8. Do not keep the battery close to liquid or store it in a damp place.
9. Do not place the battery near open flames or heaters or other sources of ignition.
10. Please keep the battery out of reach of children.
11. If there is a collision during use, please remove the battery. Carefully check whether the battery and connector are normal, just in case. (Note: The battery may be hot to the touch!)
12. Do not splash the electrolyte into the eyes or skin. If it accidentally splashes, please wash it immediately with water. In severe cases, please seek medical attention immediately.
13. Do not disassemble or reassemble the battery or change the wiring arbitrarily.
14. Please carefully check the battery voltage and level before charging or using.
15. Do not short circuit (positive and negative polarity reversed).
16. Do not directly contact batteries with leakage.
17. Please charge within a temperature range of 0-45 ℃.
18. For batteries that have not been used for a long time, please ensure that they are charged and discharged for activation within 3 months to maintain battery stability.
