903462 7.4V 1600mAh High magnification polymer lithium battery

903462 7.4V 1600mAh High magnification polymer lithium battery

Specifications
Voltage (V)	7.4V	7.4V	7.4V
Capacity (Ah)	1600mAh	1600mAh	1600mAh
Charging voltage (V)	8.4V	8.4V	8.4V
Number of cycles (times)	More than 250-300 times	More than 250-300 times	More than 250-300 times
Scope of use	Toy model	Toy model	Toy model
Weight	84.5g	84.5g	84.5g
Product size (mm)	69.5 length * 35.5 width * 18 thickness (mm)	69.5 length * 35.5 width * 18 thickness (mm)	69.5 length * 35.5 width * 18 thickness (mm)
Shelf life	1 year	1 year	1 year
Charging time (h)	About 2-3 hours	About 2-3 hours	About 2-3 hours
Battery cell standard	A-type battery cell	A-type battery cell	A-type battery cell

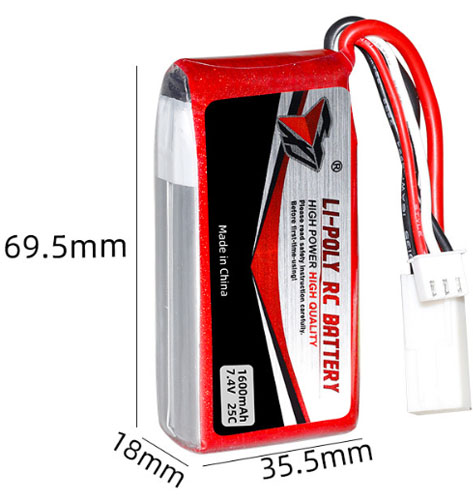

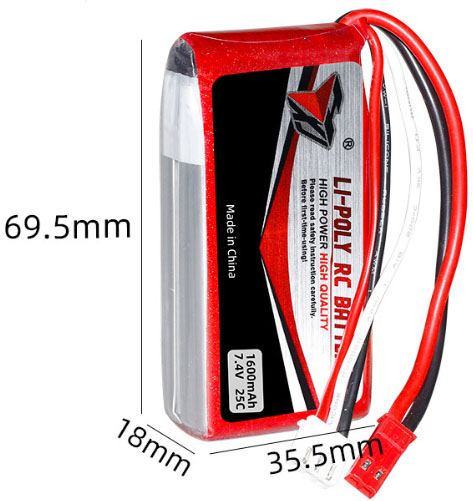

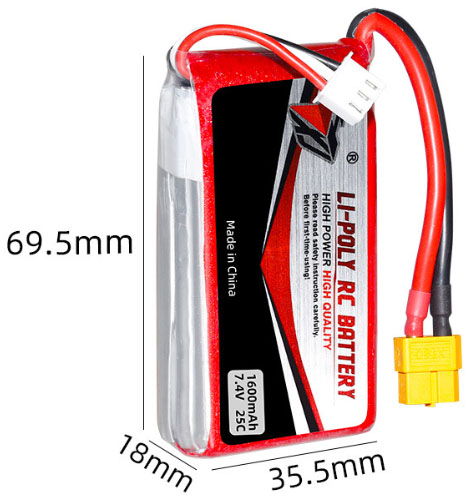

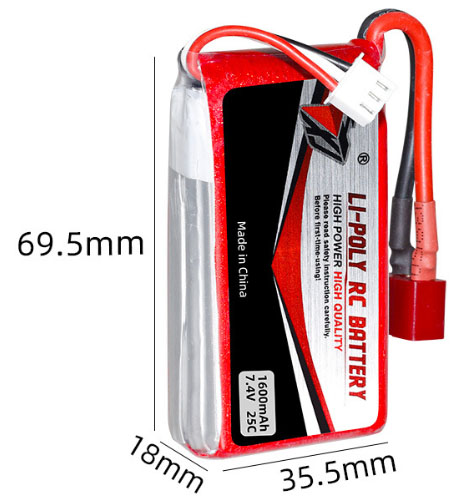

Battery type	Cylindrical lithium battery[XT60 plug]	Cylindrical lithium battery[T-shaped red plug]	Cylindrical lithium battery[JST Red plug]
Combination method	2S1P	2S1P	2S1P
Charging current (A)	1-2(A)	1-2(A)	1-2(A)
Battery model	903462	903462	903462
Battery rate	25C	25C	25C

Specifications
Voltage (V)	7.4V	7.4V	7.4V
Capacity (Ah)	1600mAh	1600mAh	1600mAh
Charging voltage (V)	8.4V	8.4V	8.4V
Number of cycles (times)	More than 250-300 times	More than 250-300 times	More than 250-300 times
Scope of use	Toy model	Toy model	Toy model
Weight	84.5g	84.5g	84.5g
Product size (mm)	69.5 length * 35.5 width * 18 thickness (mm)	69.5 length * 35.5 width * 18 thickness (mm)	69.5 length * 35.5 width * 18 thickness (mm)
Shelf life	1 year	1 year	1 year
Charging time (h)	About 2-3 hours	About 2-3 hours	About 2-3 hours
Battery cell standard	A-type battery cell	A-type battery cell	A-type battery cell

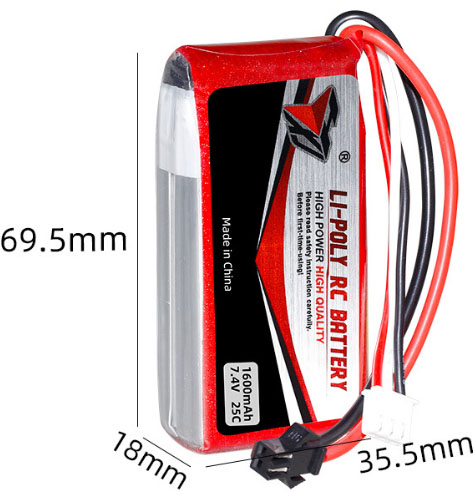

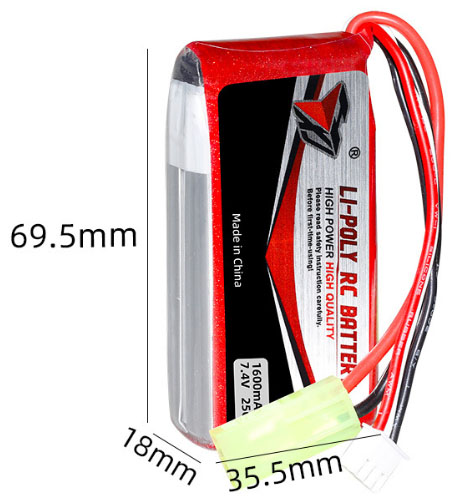

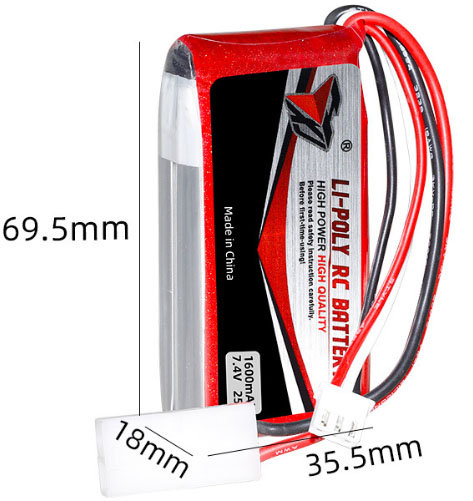

Battery type	Cylindrical lithium battery[SM black plug]	Cylindrical lithium battery[Green plug of Oda Palace]	Cylindrical lithium battery[EL-2P white plug]
Combination method	2S1P	2S1P	2S1P
Charging current (A)	1-2(A)	1-2(A)	1-2(A)
Battery model	903462	903462	903462
Battery rate	25C	25C	25C

Specifications
Voltage (V)	7.4V
Capacity (Ah)	1600mAh
Charging voltage (V)	8.4V
Number of cycles (times)	More than 250-300 times
Scope of use	Toy model
Weight	84.5g
Product size (mm)	69.5 length * 35.5 width * 18 thickness (mm)
Shelf life	1 year
Charging time (h)	About 2-3 hours
Battery cell standard	A-type battery cell
Battery type	Cylindrical lithium battery[KET-2P white plug]
Combination method	2S1P
Charging current (A)	1-2(A)
Battery model	903462
Battery rate	25C

Applicable to: car model, ship model, and aircraft model
Remote control aircraft: The requirements for remote control aircraft are relatively high, and must be compared with the standard battery size of your aircraft;
Radio-controlled car and remote control boat: Radio-controlled car and remote control boat the voltage is the same as the plug, the size and battery volume can be appropriately increased to extend the play time.

Battery use:
When charging, keep away from flammable items as overcharging may cause the battery to explode.
Batteries that have already ruptured should be treated in green immediately and cannot be reused.
Connecting the positive and negative poles can cause battery short circuits and explosion hazards.
Battery damage and injury caused by not following the instructions shall be borne by the user.
Battery damage caused by human overcharging and discharging cannot be returned or exchanged. Do not charge or discharge without anyone watching, as accidents may occur.

REMINDER
1. Do not use nickel cadmium (NICD), nickel hydrogen (NIMH), or other types of battery specific chargers to charge lithium ion batteries.
Please use a Li ion dedicated charger for charging.
2. Do not charge without anyone watching.
3. Do not overcharge (the fully charged voltage of each battery cell should not exceed 4.2V).
4. When charging, please note that the charging desktop or platform can withstand heat and high temperatures.
5. At no time should the battery cells overheat. After the temperature
